China Coffee Powder/ Wheat Flour/Condiment/Solid Drink/Auger Filling Machines Manufacturer



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
3800PCS/Hour
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
BZF
Filling Principle:
Vacuum
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Linear
Packaging:
Bag
Packaging Material:
Bottle or Bag
Name:
Powder Filling Machine
Keywords:
Filling Machine
Material:
SUS304 Stainless Steel
Suitable Product:
Powder ,Spice ,Coffee Powder ,Wheat Flour
Range:
Pharmaceutical/Food/Medical/Health
Measure Model:
Screw Feeder
Filling Container:
Bag or Bottle
Weight Range:
1-500g/5000g
Control System:
PLC Touch Screen
Speed:
40-120 PCS/M
Trademark:
BSIT
Transport Package:
Export Wooden Case
Specification:
meet with GMP standards
Origin:
Made in China
HS Code:
8422303090
Type:
Volumetric Filling Machine
Automatic Grade:
Automatic
Material Type:
Liquid
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Filling Head
Dosing Device:
Plunger

Product Description

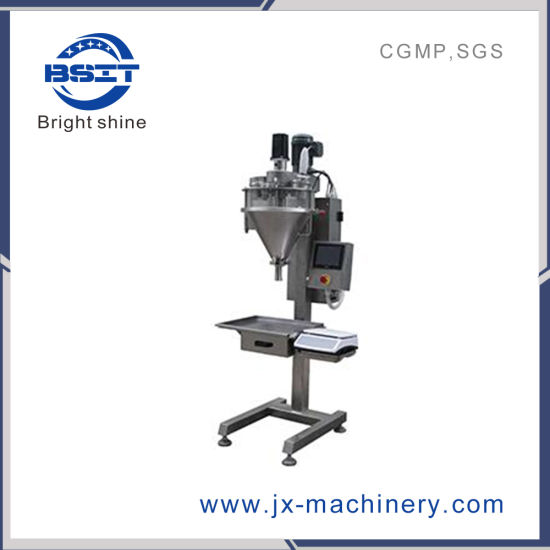

China coffee powder/ wheat flour/condiment/solid drink/Auger Filling Machines Manufacturer

Product Description

This type can do dosing and filling work. Due to the special professional design, so it is suitable to the fluidic or low-fluidity materials, like coffee powder, wheat flour, condiment, solid drink, veterinary drugs, dextrose, pharmaceuticals, powder additive, talcum powder, agriculture pesticide, dyestuff, and so on.

Main features :

1. this filling machine suitable for bag or bottle or container by filling powder or granule

2. Stainless steel structure; Quick disconnecting or split hopper could be washed easily without tools. Servo motor drive screw.
3. Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.
Save the parameter of different filling weight for different materials. To save 10 sets at most Replacing the auger parts,
4.it is suitable for material from super thin powder to granule.

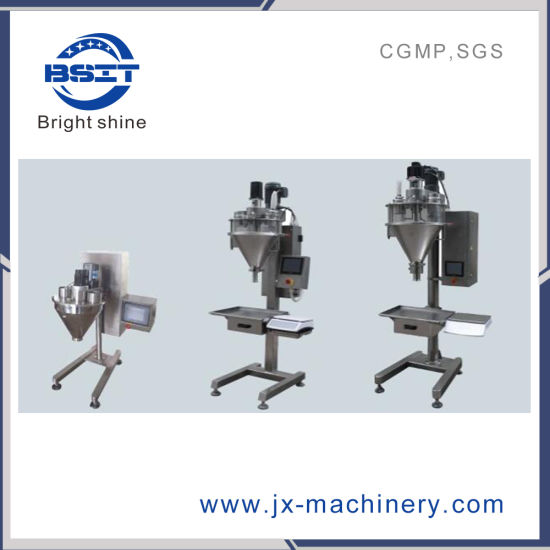

China Coffee Powder/ Wheat Flour/Condiment/Solid Drink/Auger Filling Machines Manufacturer

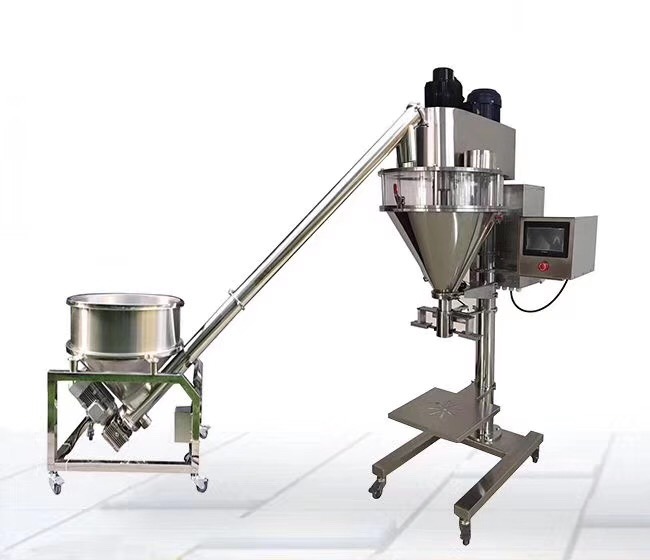

thansfor powder feeder as optional (work for auger powder filling machine)
China Coffee Powder/ Wheat Flour/Condiment/Solid Drink/Auger Filling Machines Manufacturer

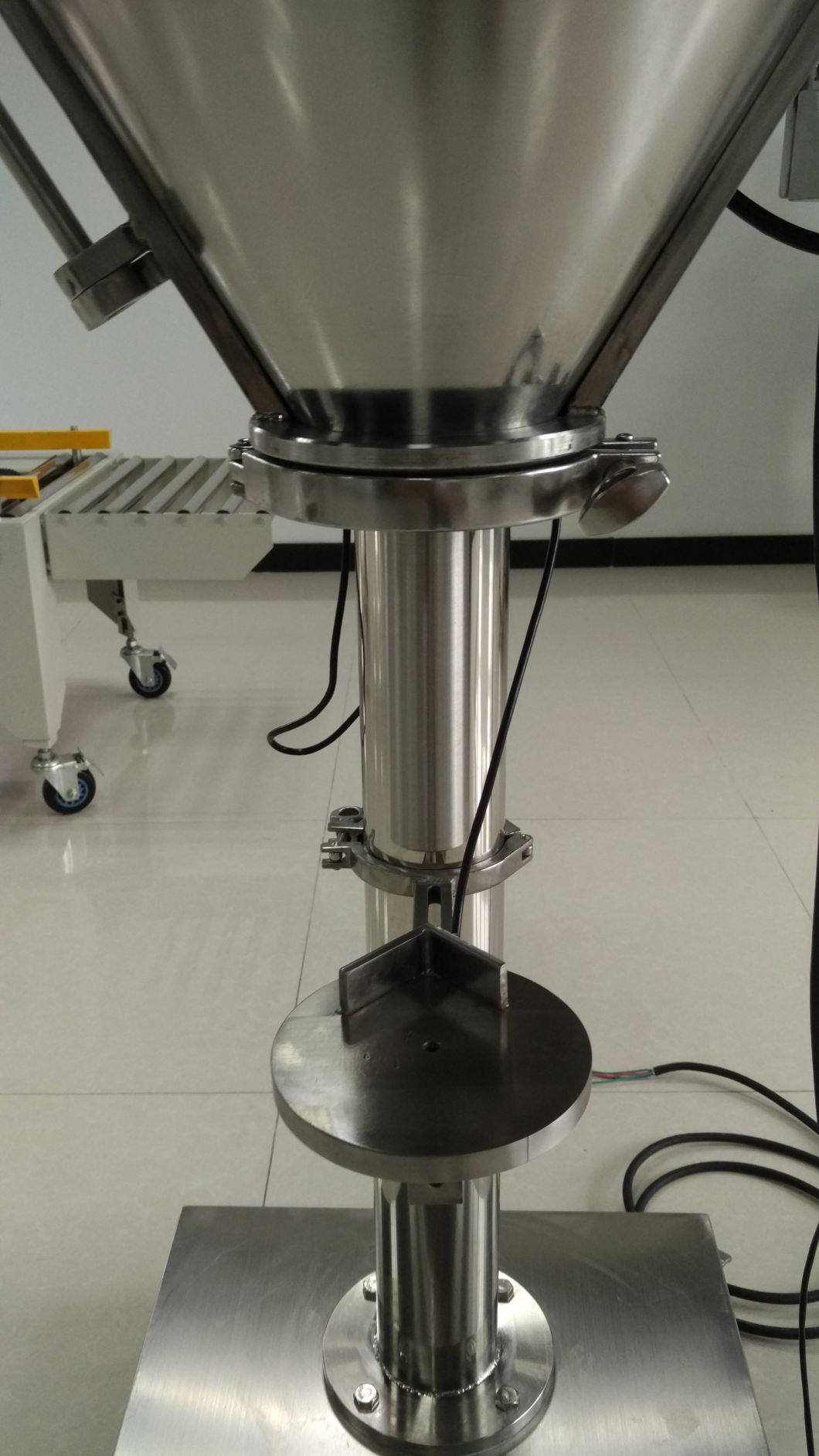

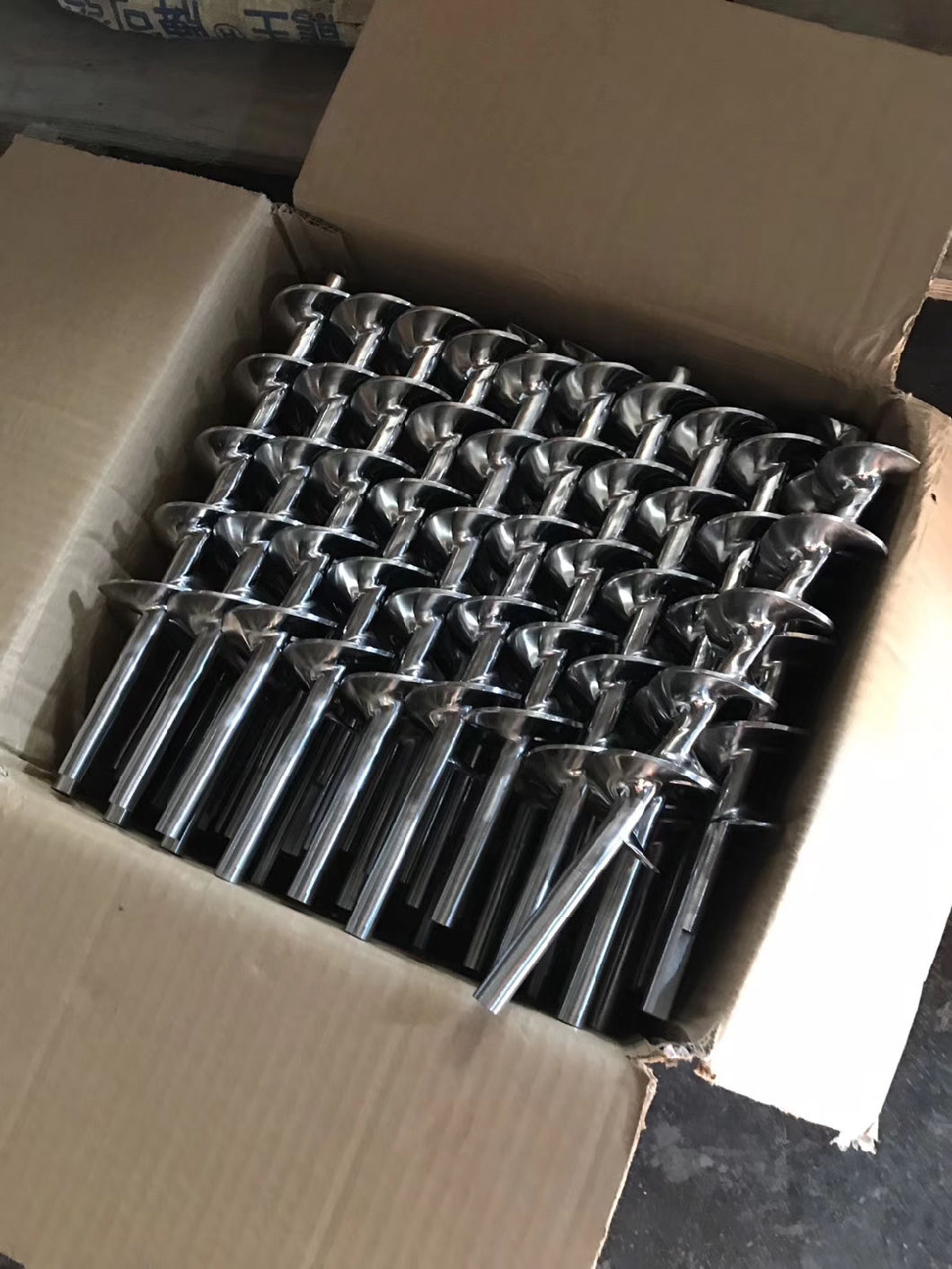

Screw feeder sample:

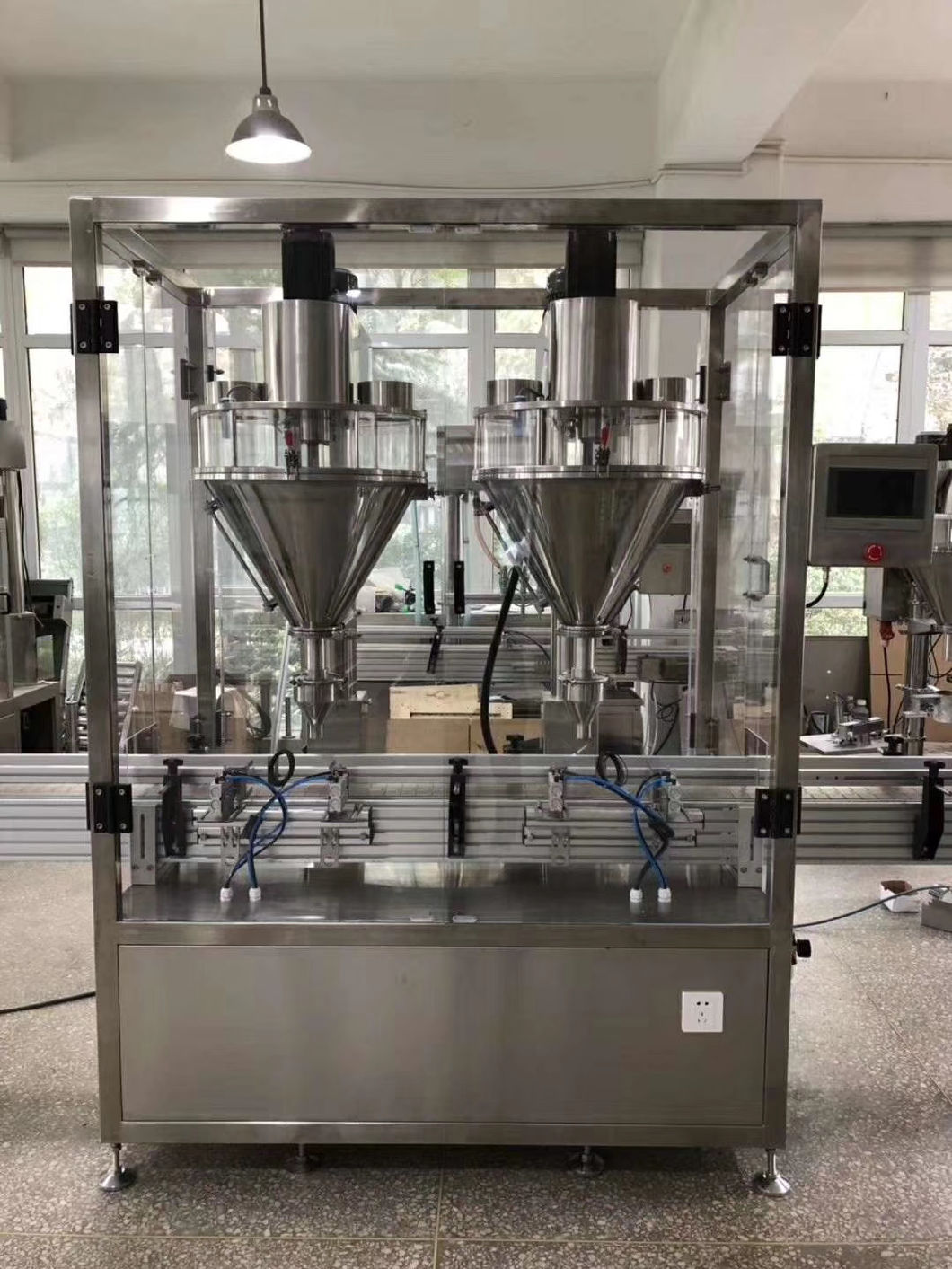

China Coffee Powder/ Wheat Flour/Condiment/Solid Drink/Auger Filling Machines Manufacturer

filling powder sample:

China Coffee Powder/ Wheat Flour/Condiment/Solid Drink/Auger Filling Machines Manufacturer

Technical data:

Model	BCS-1A-22	BCS-1B-321	BCS-1B-423
Control system	PLC & Touch Screen	PLC & Touch Screen	PLC & Touch Screen
Hopper	Quick disconnecting hopper 25L	Quick disconnecting hopper 50L	Split hopper 50L
Packing Weight	1 - 500g	10 - 5000g	10 - 5000g
Packing Weight	≤ 100g, ≤±2%; 100 - 500g, ≤±1%	≤ 100g,≤±2%; 100 - 500g,≤±1%; ≥500g,≤±0.5%	≤ 100g, ≤±2%; 100-50g, ≤±1%; ≥500g, ≤±0.5%
Filling speed	40 - 120 times per min	40 - 120 times per min	40 - 120 times per min
Power supply	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz
Total Power	0.93 Kw	1.4Kw	1.4Kw
Total Weight	130kg	260kg	280kg
Overall Dimensions	800×790×1900mm	1140×970×2200mm	1140×970×2200mm
