CS-1
BSIT
Shanghai, China
7 Sets/Week
T/T, Western Union, Paypal, Money Gram

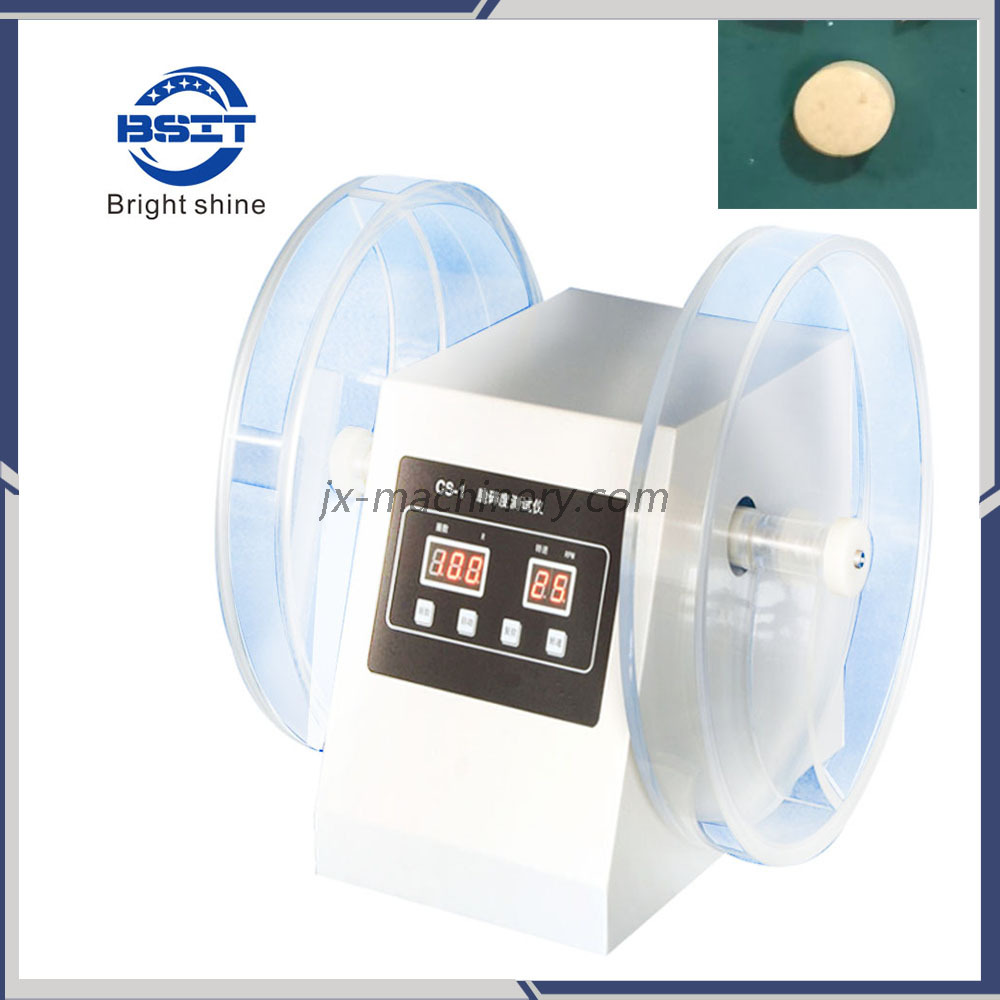

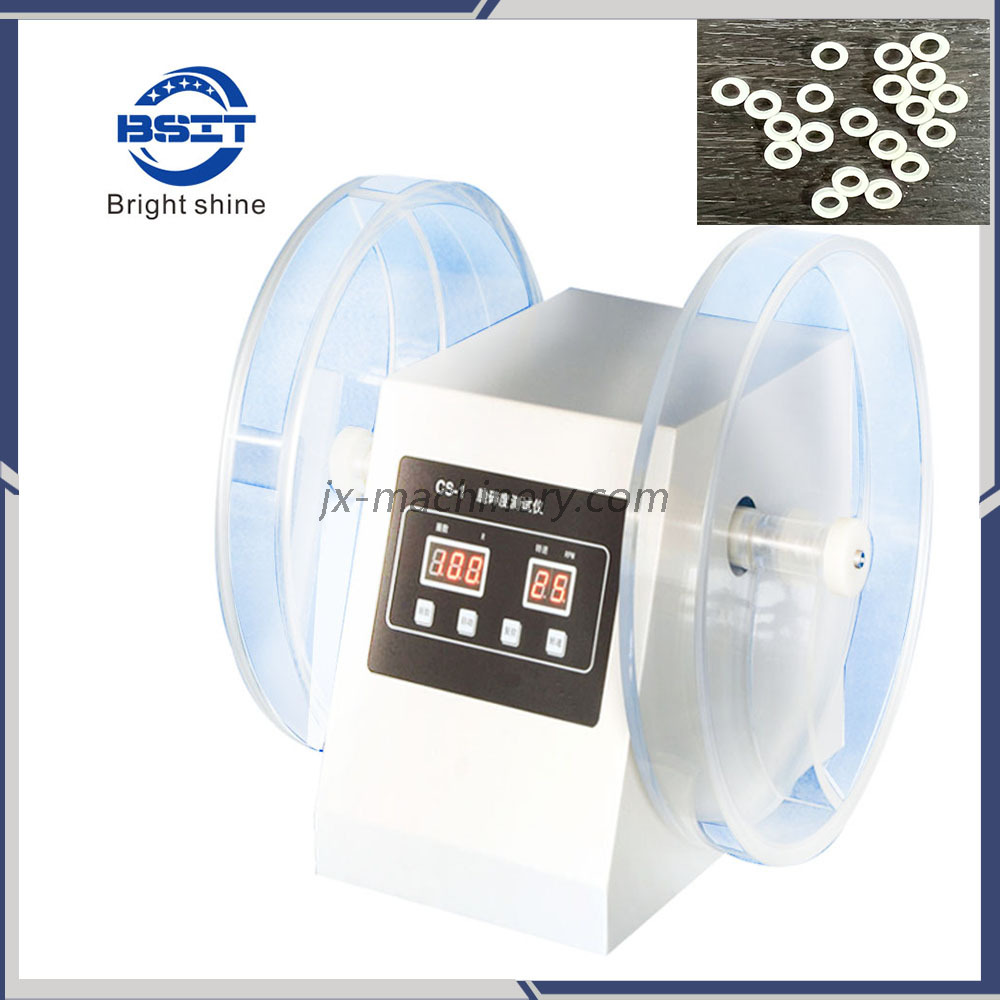

CS-1 Friability tester
Product Description
CS series of instruments are used for detecting friability.
Applicable standards
National standard(Chinese codex)/ 2015/
Corporate standard(tablet friability tester) Q/12XQ0189-2010
Features
Two drums run synchronously. Auto stop at timing point .
The drum is made of high quality hyaline acryl.
The speed and revolution of the drum can be preset at any time. Either preset or real data is displayed on the LED.
A MPU is used to control all operations, high accuracy is achieved in testing rotary speed and circle number.
Automation : auto-test, auto- diagnose ,auto-alarm.
Technical parameter
| Cylinder number | 2 |
| Cylinder inner diameter | Φ286mm |
| Cylinder depth | 39mm |
| Tablet fall height | 156mm |
| Rotation speed | (20-90)rpm |
| Rotation Speed accuracy | ±1rpm |
| Rotation count | (10~900)r |
| Rotation count accuracy | ±1r |
| Power | 220V/ 50Hz/ 60W |
| Dimension | 370×300×340)mm3 |
Carton package
Wooden case for more than 3 sets of testers
Technical Parameter for CS series friability Tester
| Model | CS-1 | CS-2 | CS-3 | CS-4 |
| Cylinder number | 2 | 2 | 2 | 1 |
| Cylinder inner diameter | Φ286mm | Φ286mm | Φ286mm | Φ286mm |
| Cylinder depth | 39mm | 39mm | 39mm | 39mm |
| Tablet fall height | 156mm | 156mm | 156mm | 156mm |
| Rotation speed | (20-90)rpm | 25rpm | 25rpm | 25rpm |
| Rotation Speed accuracy | ±1rpm | ±1rpm | ±1rpm | ±1rpm |
| Rotation count | (10~900)r | 100r | 10-900r | 100r |
| Rotation count accuracy | ±1r | ±1r | ±1r | ±1r |
| Power | 220V/ 50Hz/ 60W | 220V/ 50Hz/ 40W | 220V/ 50Hz/ 40W | 220V/ 50Hz/ 50W |
| Dimension | 370×300×340)mm3 | 370×300×340mm3 | 370×300×340mm3 | 300×200×340mm3 |
CS-1 Friability tester
Product Description
CS series of instruments are used for detecting friability.
Applicable standards
National standard(Chinese codex)/ 2015/
Corporate standard(tablet friability tester) Q/12XQ0189-2010
Features
Two drums run synchronously. Auto stop at timing point .
The drum is made of high quality hyaline acryl.
The speed and revolution of the drum can be preset at any time. Either preset or real data is displayed on the LED.
A MPU is used to control all operations, high accuracy is achieved in testing rotary speed and circle number.
Automation : auto-test, auto- diagnose ,auto-alarm.
Technical parameter
| Cylinder number | 2 |
| Cylinder inner diameter | Φ286mm |
| Cylinder depth | 39mm |
| Tablet fall height | 156mm |
| Rotation speed | (20-90)rpm |
| Rotation Speed accuracy | ±1rpm |
| Rotation count | (10~900)r |
| Rotation count accuracy | ±1r |
| Power | 220V/ 50Hz/ 60W |
| Dimension | 370×300×340)mm3 |
Carton package
Wooden case for more than 3 sets of testers
Technical Parameter for CS series friability Tester
| Model | CS-1 | CS-2 | CS-3 | CS-4 |
| Cylinder number | 2 | 2 | 2 | 1 |
| Cylinder inner diameter | Φ286mm | Φ286mm | Φ286mm | Φ286mm |
| Cylinder depth | 39mm | 39mm | 39mm | 39mm |
| Tablet fall height | 156mm | 156mm | 156mm | 156mm |
| Rotation speed | (20-90)rpm | 25rpm | 25rpm | 25rpm |
| Rotation Speed accuracy | ±1rpm | ±1rpm | ±1rpm | ±1rpm |
| Rotation count | (10~900)r | 100r | 10-900r | 100r |
| Rotation count accuracy | ±1r | ±1r | ±1r | ±1r |
| Power | 220V/ 50Hz/ 60W | 220V/ 50Hz/ 40W | 220V/ 50Hz/ 40W | 220V/ 50Hz/ 50W |
| Dimension | 370×300×340)mm3 | 370×300×340mm3 | 370×300×340mm3 | 300×200×340mm3 |
