Box packing machine

Views:2     Author:Site Editor     Publish Time: 2020-12-11      Origin:Site

                                                                BSM-125 suppository carton packing machine

suitable for suppository packing, bottle packing, bag packing, blister packing, plastic ampoule,plaster carton box packing

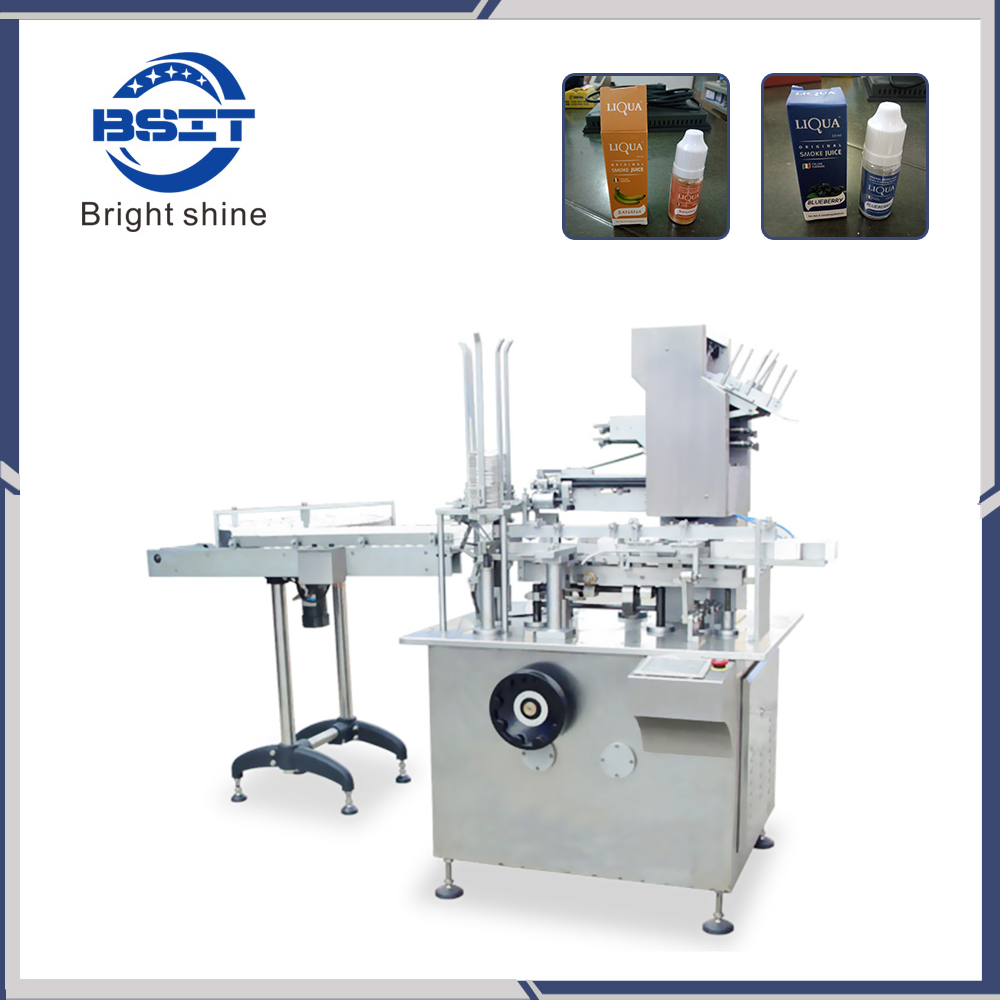

BSM125 cartoning -01 (2)

Application:


This equipment is new model developping base on integrated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for blister package product, adjust automatic feeding structure conveniently, setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold(1-4folds) and feeding, leaflet detecting, Canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.

Features:
1: International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2: Adopt human-machine operation system.
3: Automatically stop when machine is overload.
4: Automatically reject lacking of package product and leaflet.
5: Automatically display trouble, Alarm and count finished products.
6: Stable performance, operation is easy.

Technical Parameter:

ItemParameters
Encasing speed30-100 boxes /min
BoxQuality requirement250-350g/m*m[Base on carton size]
Dimension range(L× W× H)(70-180)mm× (35-85)mm× (14-50)mm
LeafleQuality requirement60-70g/m*m
Unfolded leaflet specification(80-250)mm× (90-170)mm
Fold range[1-4]Fold
Compressed airWorking pressure≥ 0.6mpa
Air consumption120-160L/min
Power supply220V  50HZ
Main motor power0.75kw
Machine dimension(L× W× H)3100mm× 1100mm× 1550mm
Machine weight1400kg

box Sample:

入盒机成品,
