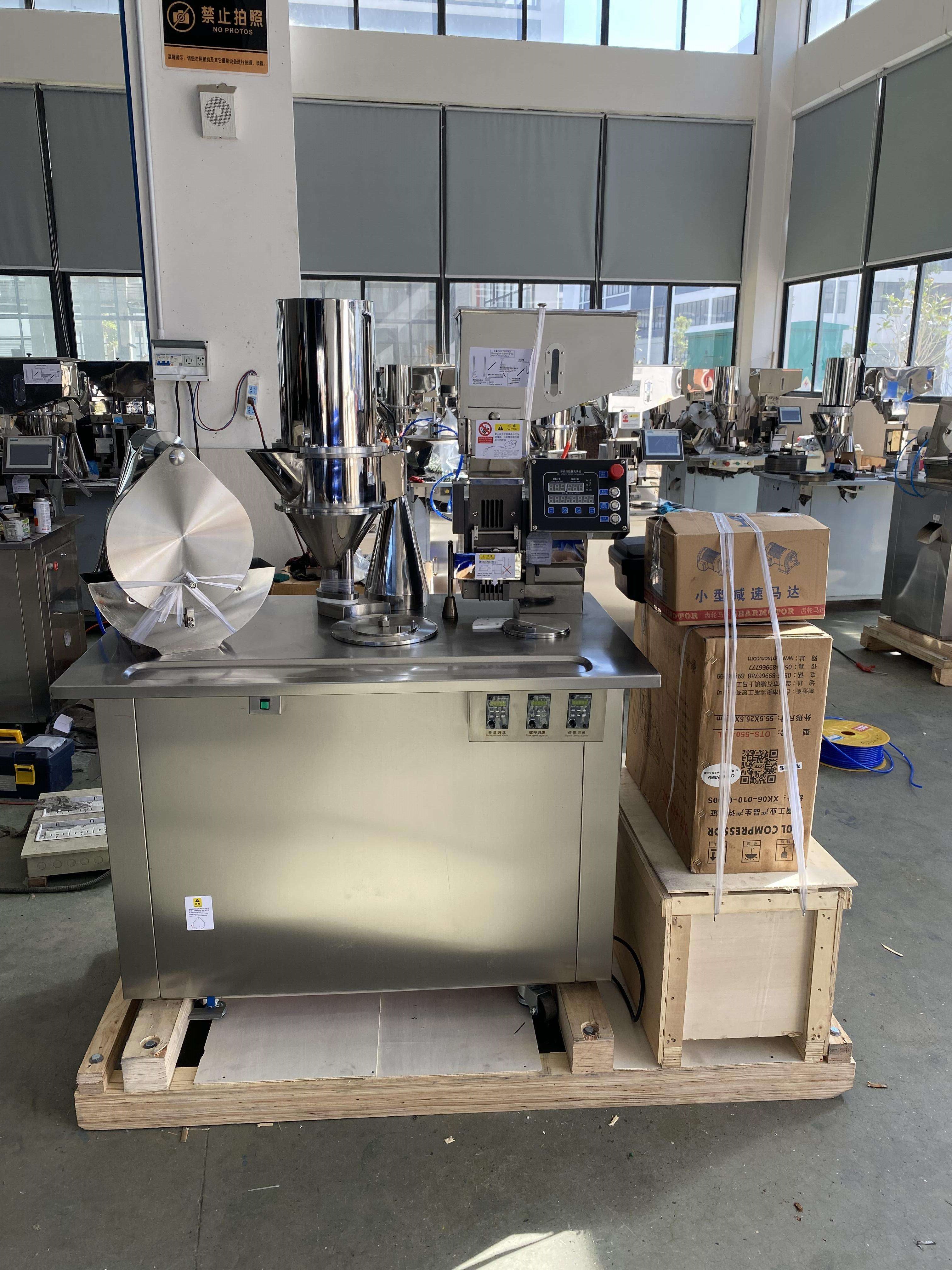

CGN-208D Semi-Automatic Capsule Filling Machine
Button control/PC board control /PLC touch screen control as optioanl
Application :
CGN-208D new semi-automatic Capsule Filling Machine is new medical filling powder/granule into empty capule with novel structure and artistic molding. It adopts mini computer speed-adjusting equipment, and to be controlled by the electric and pneumatic, equips electron automatic counting device. It can respectively finish the different processes separately such as arrangement, separating, filling, locking and etc.
Feature:
Which reduce labor intensity, improve production efficiency, raise the accuracy of filling dosage.
The machine meet with GMP standard.
This product is composed of sending capsule, arranging capsule and separation mechanism, medicines filling mechanism, tight locking mechanism, mini computer speed-adjusting mechanism, pneumatic and electric control system, protective equipment, vacuum pump, air pump accessories etc.
It is suitable for both the domestic and imported capsules; Certificated rate is more than 97%.
Technical data:
Maximum productive capacity （pcs/h） | 15000 |
Capsule size | 00#, 0#, 1#, 2#, 3#, 4# hard capsule |
Power (kw) | 2.2 |
Power supply | 380V 50Hz |
Ovrerall dimensions (mm) | 1350x700x1600(LxWxH) |
Weight (kg) | 400 |
sample:
